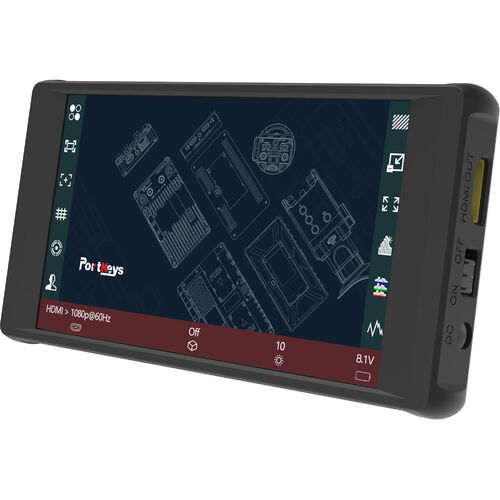

PORTKEYS PT6 6" 4K HDMI Touchscreen Monitor
Features
- 5.2" 1920 x 1080 Touchscreen Display
- 4K30 HDMI Input/1080p60 HDMI Output
- 3D LUT Output, UI Output, DCI-P3 Color
- 600 cd/m² Bright/1500:1 Contrast Ratio
- Vertical Output with Stretch Feature
- Anamorphic Output, Brightness, Tint
- DC Input, USB-A Output Port
- Customized Peaking & Cropping
- Sunshade & Tilting Shoe Bracket
- L-Series & LP-E6 Battery Support
Add nuanced, LUT-enhanced imagery to your video monitoring using the PT6 6" 4K HDMI Touchscreen Monitor from PORTKEYS. This compact, 5.2" touchscreen monitor supports the DCI-P3 wide color gamut and offers a host of imaging tools like focus peaking, image cropping, and anamorphic output. It features up to 4K30 HDMI input and 1080p60 output, UI output, and a stretch function for vertical monitoring.
3D LUT Output
Provides the ability to output 3D LUTs for customized, nuanced monitoring

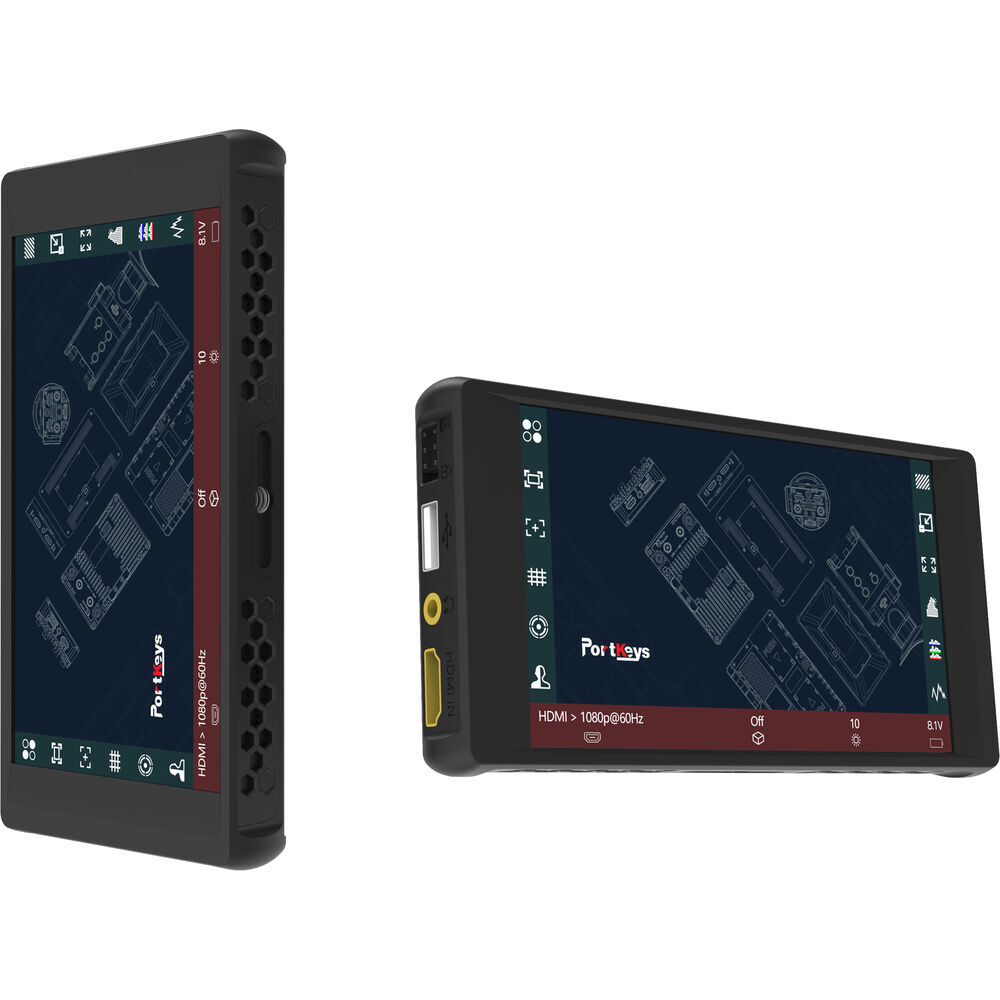

Vertical Stretch
Real-time image stretching for vertical-mode capture
Up to 4K HDMI Input
Supports up to DCI 4K30 input and 1080p60 output, both via HDMI
Wide Color Gamut
Covers 100% of the DCI-P3 wide color gamut, producing detailed, refined images
Anamorphic HDMI Output
- Calibrates anamorphic lenses, outputs via HDMI
- Supports 1.0/1.33/1.4/1.5/1.6/1.85/2/2.35x ratios and 0.25-4x user-defined adjustment range
Touchscreen
Bright, compact, 5.2" touchscreen for on-camera monitoring
Imaging Tools
- 3D LUTs, anamorphic calibration
- Vertical extension for portrait mode
- Exposure: RGB and luma waveforms
- Luma histogram, zebra
- ARRI false color, false color
- Focus: Zoom functions, customized peaking
- Cropping: Customized cropping for viewing image details
- Framing: Check field, grids, image flip, and crosshair marks
- Display: Anamorphic, color temperature, contrast, and sharpness
- Display: Brightness, tint, backlight, and underscan
- Battery: Remaining power
- Audio: Metering
Specs
Display
Panel Type | IPS-Type LCD |
Display Size | 5.2" / 13.2 cm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Viewing Angle | Horizontal: 178° Vertical: 178° |
Touchscreen | Yes |
Maximum Brightness | 1500 cd/m2 |
Contrast Ratio | 600:1 |
Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
HDR Compatibility | Yes |
Pixels Per Inch (ppi) | 423 ppi |
Color Gamut | 100% DCI-P3 100% Rec. 709 |
Real-Time LUT Monitoring | SDR, HDR |
Image Controls | Anamorphic De-Squeeze, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, Pixel Zoom, R/G/B/Chroma Only, RGB Parade, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra |

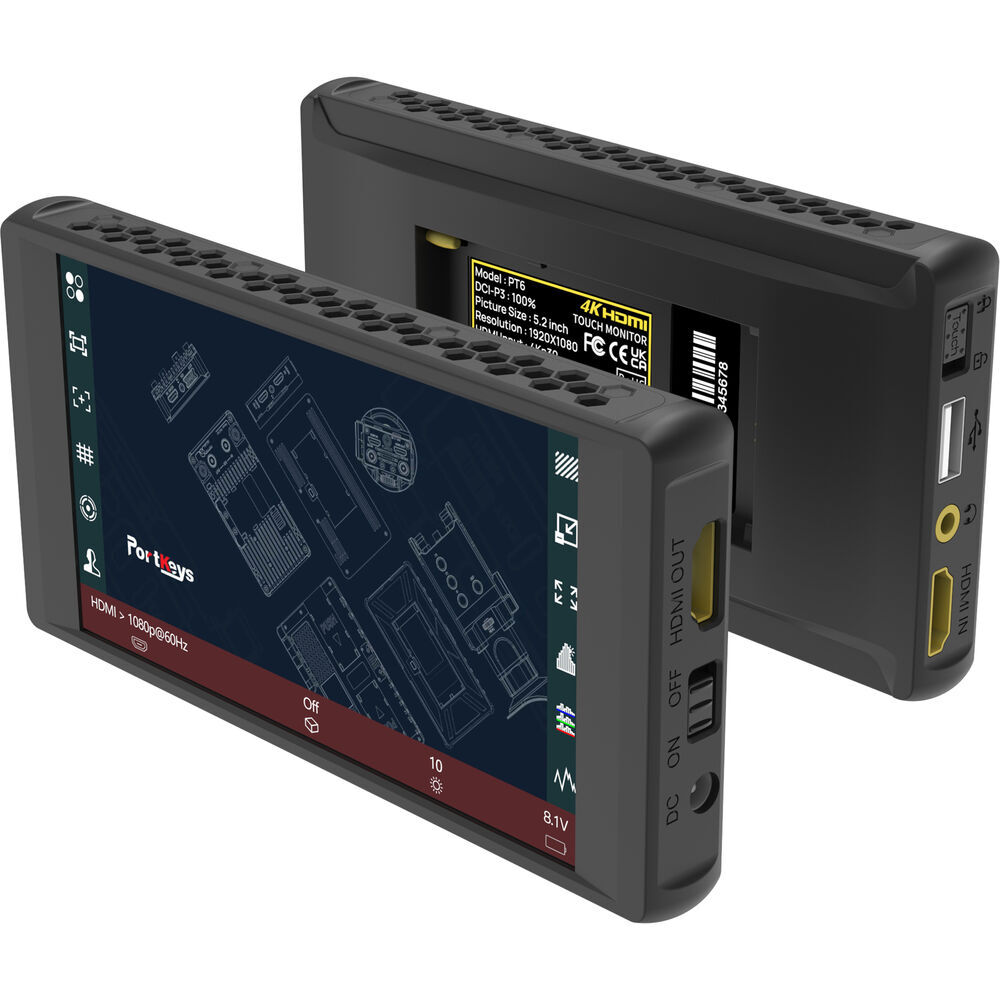

Inputs / Outputs
Video I/O | 1 x HDMI Input 1 x HDMI Output |
Embedded Audio | HDMI |
Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | None |
Power I/O | 1 x Barrel (24 VDC) Input |
Other I/O | 1 x USB-A 2.0 Input |
Media/Memory Card Slot | None |
Wi-Fi | None |
App Compatible | No |
Format Support
Video Format | HDMI (10-Bit 4:4:4/4:2:2) DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94 |
Gamma Curve | HDR-HLG |
Power
DC Input Power | 7 to 24 VDC |
Battery Type | 1 x LP-E6, L-Series |
Power Consumption | 6 W (Maximum) |
Mounting | 1 x 1/4"-20 Female |
General
Material of Construction | Plastic, Polycarbonate |
Dimensions | 5.9 x 3.1 x 0.3" / 150.7 x 77.8 x 8.5 mm |
Weight | 6.0 oz / 170 g |
(PT6)
SKU | PT6 |
Brand | PortKeys |
Shipping Weight | 0.5000kg |
Shipping Width | 0.200m |
Shipping Height | 0.150m |
Shipping Length | 0.200m |
Shipping Cubic | 0.006000000m3 |
