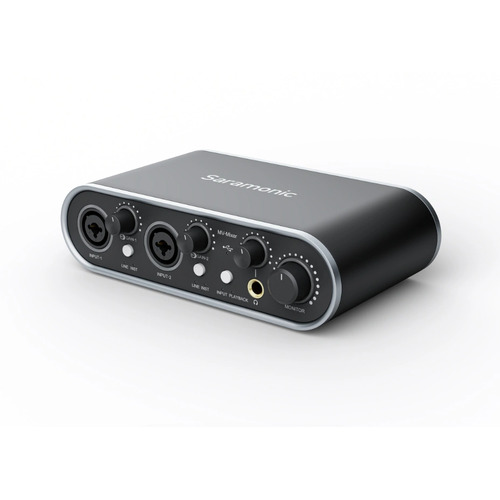

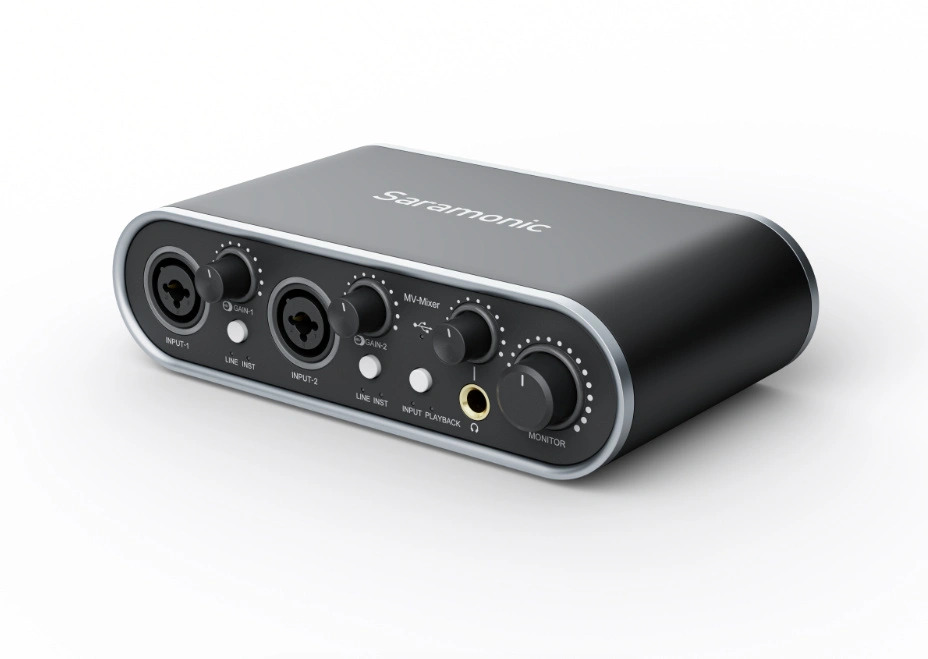

Saramonic MV-Mixer Dual-Channel Audio Interface
Features
- Windows/Mac OS
- Logic Pro X/ Cubase/Adobe Audition
- USB Powered
The Saramonic MV-Mixer Dual-Channel Audio Interface is a dual-channel USB audio interface capable of recording audio in up to 24bit, 192kHz resolution to ensure high-fidelity and rich detail of your signals.

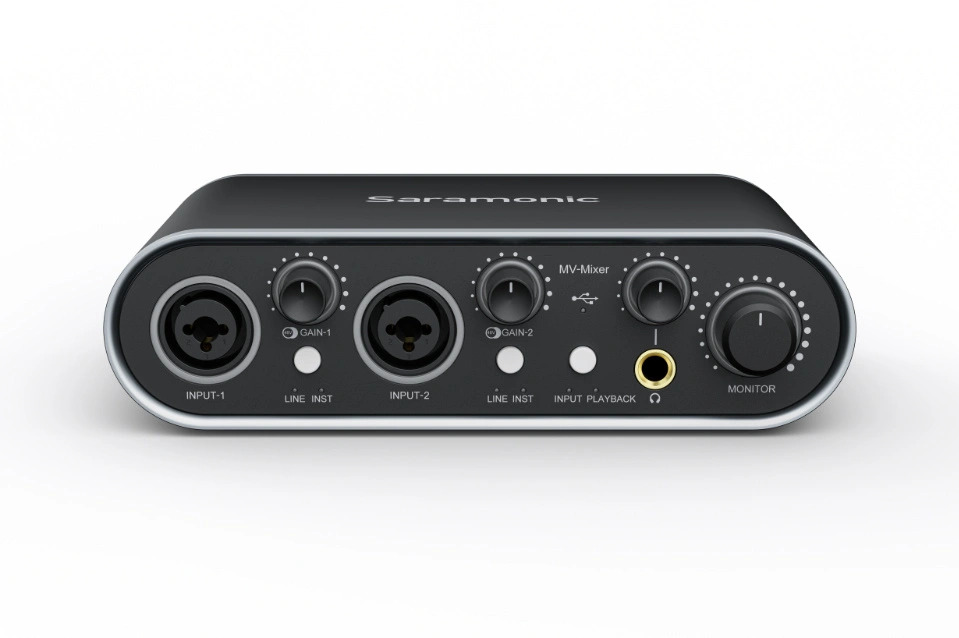

With two XLR-1/4" Combo inputs, the MV-Mixer is compatible with most XLR microphones and musical instruments, providing mic and line-level signals with clarity and natural tonality. The MV-Mixer provides selectable separate +48V phantom power for professional condenser microphones.
With a 6.35mm headphone output and a headphone volume control, the MV-Mixer can achieve a real-time/playback monitor without audio latency while offering independent volume controls.
Connect Mac/Windows computers or mobile devices through the USB interface for everything from recording remote pod casts to streamlining complex streaming setups. Independent gain controls with multicolour LED indicators clearly showing working status for each input. The MV-Mixer offers more flexible audio solutions by pressing to switch between LINE and INST modes to accept signals from different devices.

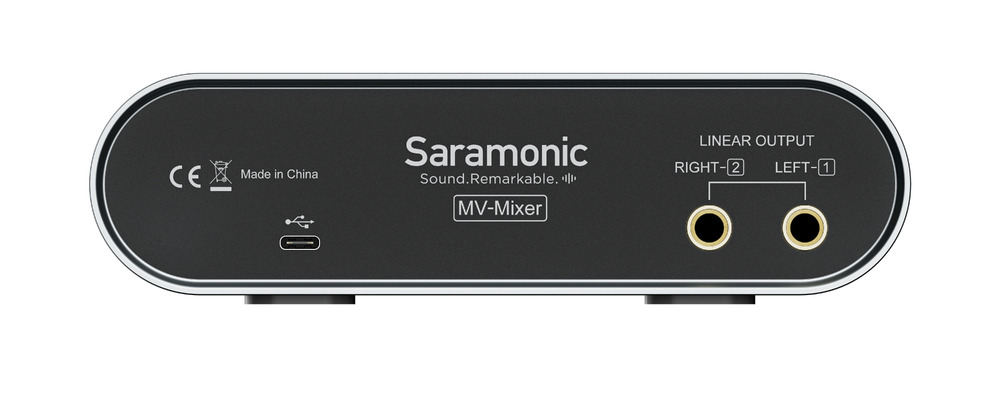

With two 1/4" line output and volume control, the MV-Mixer supports line-level signals such as a loudspeaker while offering independent volume controls.
Specifications
Sample Rates | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
Power Requirement | USB bus powered |
Microphone Power Supply | 48V phantom power (only for XLR inputs) |
Supported System | Windows/Mac OS |
Compatible Software | Logic Pro X/ Cubase/Adobe Audition |
Microphone Inputs | |
Frequency Response | 20-20KHz+1 dB |
Dynamic Range | 110 (A-weighted) |
THD+N | <0.005% |
Noise EIN | -120dBu |
Maximum Input Level | 5dBu |
Gain Range | 48dBu |
Input Impedance | 20K |
Line Inputs | |
Frequency Response | 20-20KHZ+1dB |
Dynamic Range | 110 (A-weighted) |
THD+N | <0.005% |
Noise EIN | -120dBu |
Maximum Input Level | 15dBu (at minimum gain) |
Gain Range | 48dBu |
Input Impedance | 20K |
Instrument Inputs | |
Frequency Response | 20-20KHZ+1dB |
Dynamic Range | -10 (A-weighted) |
THD+N | <0.005% |
Noise EIN | -110dBu |
Maximum Input Level | 9dBu (at minimum gain) |
Gain Range | 48dBu |
Input Impedance | 1M |
Line/Monitor Outputs | |
Dynamic Range | 102 (A-weighted) |
THD+N | <0.005% |
Maximum Output Level | 108 (A-weighted) |
Output Impedance | 560 ohm |
Headphone Outputs | |
Dynamic Range | 105 (A-weighted) |
THD+N | <0.005% |
Maximum Output Level | +8dBu |
Output Impedance | 10 ohm |
(MV-Mixer)
SKU | MV-Mixer |
Barcode # | 6971008028799 |
Brand | Saramonic |
Shipping Weight | 0.8000kg |
Shipping Width | 0.200m |
Shipping Height | 0.100m |
Shipping Length | 0.100m |
Shipping Cubic | 0.002000000m3 |
