Vaxis Atom 500 SDI/HDMI Wireless Video Transmission Set
Sporting both 3G-SDI and HDMI connections, the ATOM 500 SDI Wireless Video Transmitter and Receiver Kit from Vaxis enables transmitting visually lossless, H.265 video signals to the Vaxis receiver with less than 80 ms latency. The transmitter sends a powerful line-of-sight signal up to 500' and it can also multicast via Wi-Fi to up to three mobile devices for monitoring.

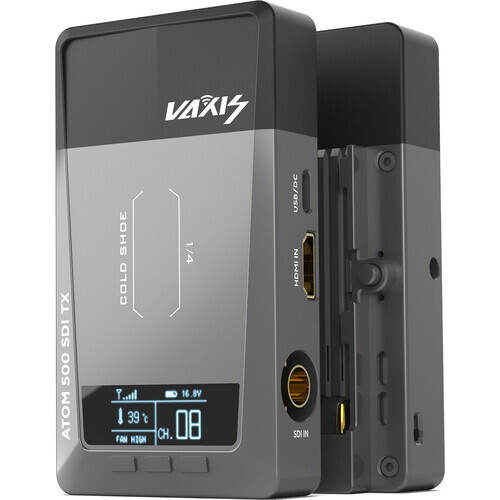

The transmitter features one 3G-SDI and one HDMI input while the receiver has one 3G-SDI and one HDMI output. Each unit features a bright, clear OLED display and they have a cooling fan that can be turned on and off to prevent noise during your production. They can be powered using its USB Type-C connector with the included cable or by using a separately available L-series battery. The USB input can also be used to upgrade the firmware.
Transmitter and receiver kit transmits 1080p wireless video up to 500' line of sight
Transmit H.265 video with very-low latency
Transmitter features one 3G-SDI and one HDMI input, and the receiver features one 3G-SDI and one HDMI output
Units are powered by either a USB Type-C power source or by using an L-series battery on its integrated plate
Multicast support for transmitting video via Wi-Fi to up to three iOS devices running the Vaxis Vision app
Adjustable cooling fan that can be turned on and off
Bright OLED screen

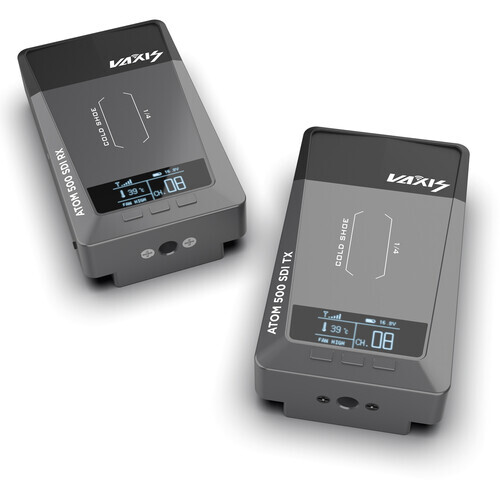

Lightweight metal housing; both units are the same size with integrated antennas
Large menu buttons are easier to press than on the HDMI only model
The unit's temperature screen can read out in Fahrenheit
A long press on the right menu button displays a WQR code, which makes it simpler to connect your phone/app to control the units
The unit supports manual and automatic channel scanning
Features:
- 1 x Transmitter and 1 x Receiver
- Up to 150m Line of Sight
- Supports up to 1080p H.265 Video
- SDI/HDMI Input/Outputs
- USB Type-C Power Input, L-Series Plate
- Multicast to iOS Devices via Wi-Fi
- Adjustable Cooling Fan
- Low Latency, OLED Display
Specifications:
Wireless
Wireless Range | 150m (Line-of-Sight) |
# of Channels | 13 |
Frequency Range | US: 5.1 to 5.9 GHz |
Latency | < 80 ms |
RF Power | 17 dBm |
RF Sensitivity | -80 dBm |
Wireless Video Compression | Compressed |
Interfaces
Transmitter Video Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Input 1 x HDMI (HDMI 1.4) Input |
Receiver Video Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Output 1 x HDMI Output |
Embedded Audio | SDI: 2-Channel HDMI: 2-Channel |
Format Support
Broadcast System Compatibility | NTSC, PAL |
Video Format | SDI/BNC: 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1080i at 50, 59.94 fps 720p at 60 fps HDMI: 1080p at 24, 25, 30, 50, 60 fps 1080i at 50, 60 fps 720p at 60 fps |
Timecode Support | Yes |
LUT Support | None |
Display
Transmitter Panel Type | OLED |
Receiver Panel Type | OLED |
Power
Transmitter Built-In Battery | None |
Receiver Built-In Battery | None |
Transmitter Battery Support | 1 x Sony L-Series / NP-F Type |
Receiver Battery Support | 1 x Sony L-Series / NP-F Type |
Transmitter Power Connector | 1 x USB Type-C Input |
Receiver Power Connector | 1 x USB Type-C Input |
Transmitter Power Consumption | Device: 5 VDC (6.5 W) |
Receiver Power Consumption | Device: 5 VDC |
General
Materials | Metal |
Transmitter Dimensions | 4.13 x 2.5 x 0.79" / 10.5 x 6.35 x 2 cm |
Receiver Dimensions | 4.13 x 2.5 x 0.79" / 10.5 x 6.35 x 2 cm |
Transmitter Weight | 4.7 oz / 134 g |
Receiver Weight | 4.6 oz / 130 g |
Package Includes:
1 x ATOM 500 SDI/HDMI Transmitter
1 x ATOM 500 SDI/HDMI Receiver
1 x USB-C Cable
(Atom500SDI)
SKU | Atom500SDI |
Brand | Vaxis |
Shipping Weight | 1.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.100m |
Shipping Length | 0.300m |
Shipping Cubic | 0.006000000m3 |
