Vaxis Atom A5 5.5" Wireless RX/TX Monitor
Features
- Wirelessly Monitor Video from up to 492'
- RX & TX Mode Switching, Trigger Control
- 5.5" 1920 x 1080 Touchscreen Display
- Record MP4 to microSD Card
- Dual L-Series Battery Plate
- HDMI Input, HDMI Loop & Headphone Output
- High 1000 cd/m² Brightness
- Replaceable Antennas
- ATOM Ecosystem, Updated CineOS Software
- 3D LUT Support, Scopes, Image Tools
The monitor supports up to 1080p60 video input via its HDMI input, and it features an HDMI loop output to send video to an external display. It also allows you to record your program as an MP4 proxy using the built-in microSD/TF card slot. Multiple imaging tools are available using the built-in CINE OS software, including scopes, peaking, and storage of up to 50 3D LUTs on the monitor.

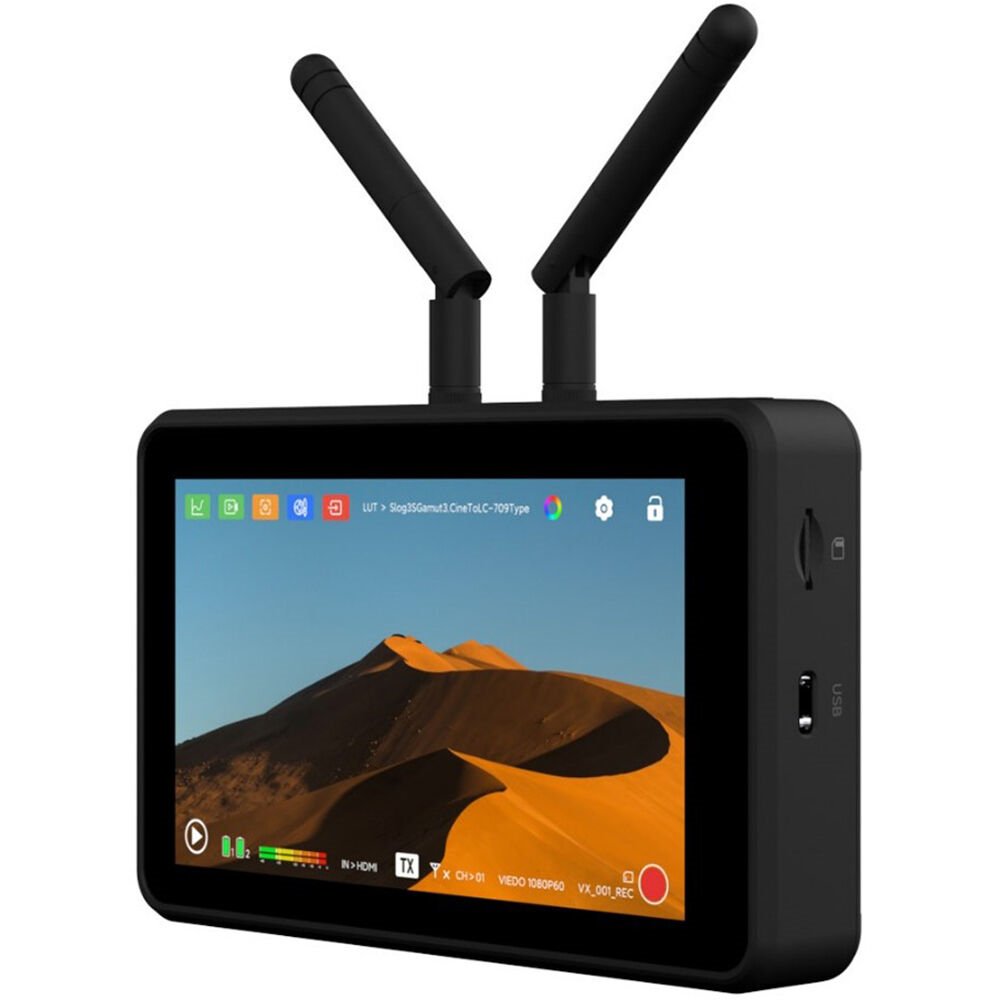

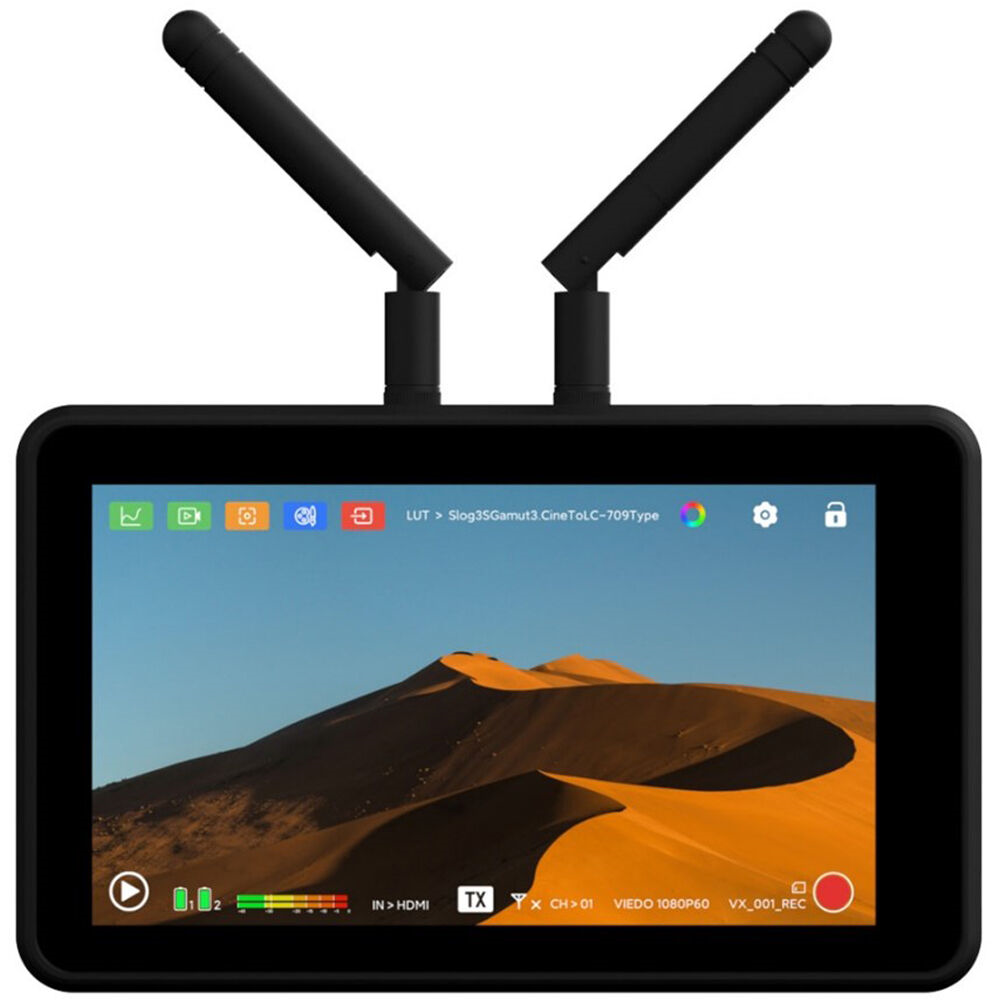

Display
5.5" touchscreen LCD screen with 1080p resolution and 1000 cd/m² brightness

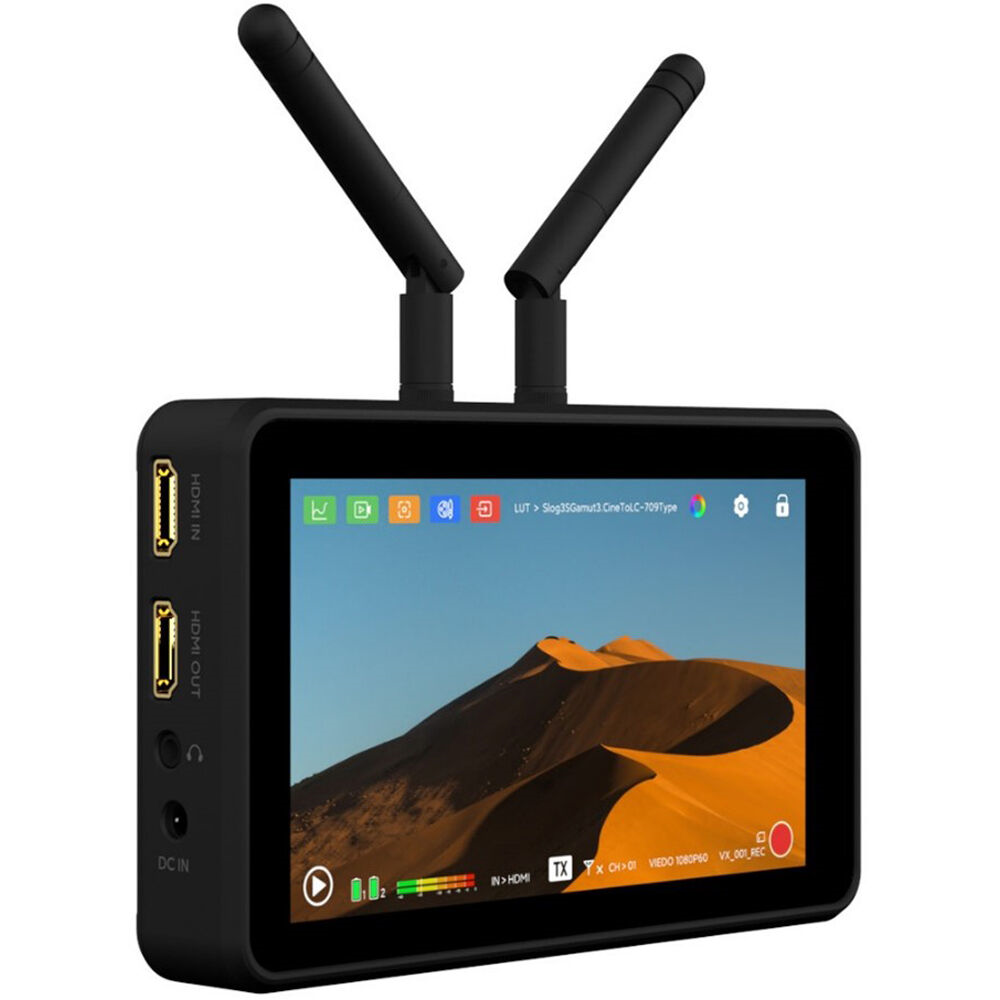

Input/Output
The Atom A5 features HDMI input and HDMI loop output, as well as a 3.5mm headphone output
Wirelessly Transmit and Receive Video
Transmitter and receiver in one; can transmit or receive to or from multiple Atom series transmitters and receivers
Recording
Record MP4 video files onto a microSD/TF card with the built-in media slot, and the Atom A5 allows you to instantly play the footage back
Compatibility
Compatible with the Atom ecosystem, including the Atom 500 HDMI or SDI, Atom 600 KV TX, and Atom A5H
Timecode Sync
The Atom A5 can sync timecode with the camera so you can simultaneously trigger record on the monitor when the camera records
Wireless Range
Transmission distance up to 492'
Image Tools
The updated CINE OS software features multiple imaging tools such as peaking and scopes, and it supports up to 50 3D LUTs to be stored on the monitor
Antennas
Two replaceable antennas can be swapped out for optional longer-range antennas

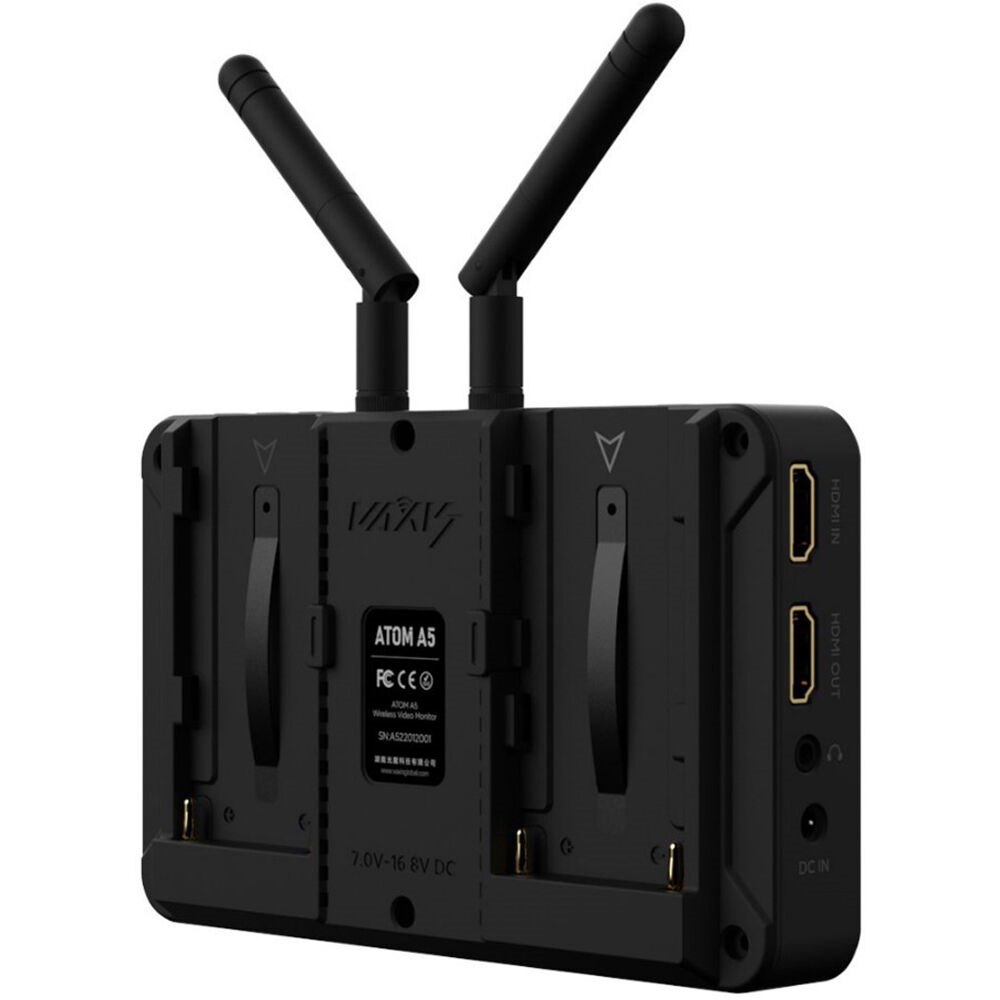

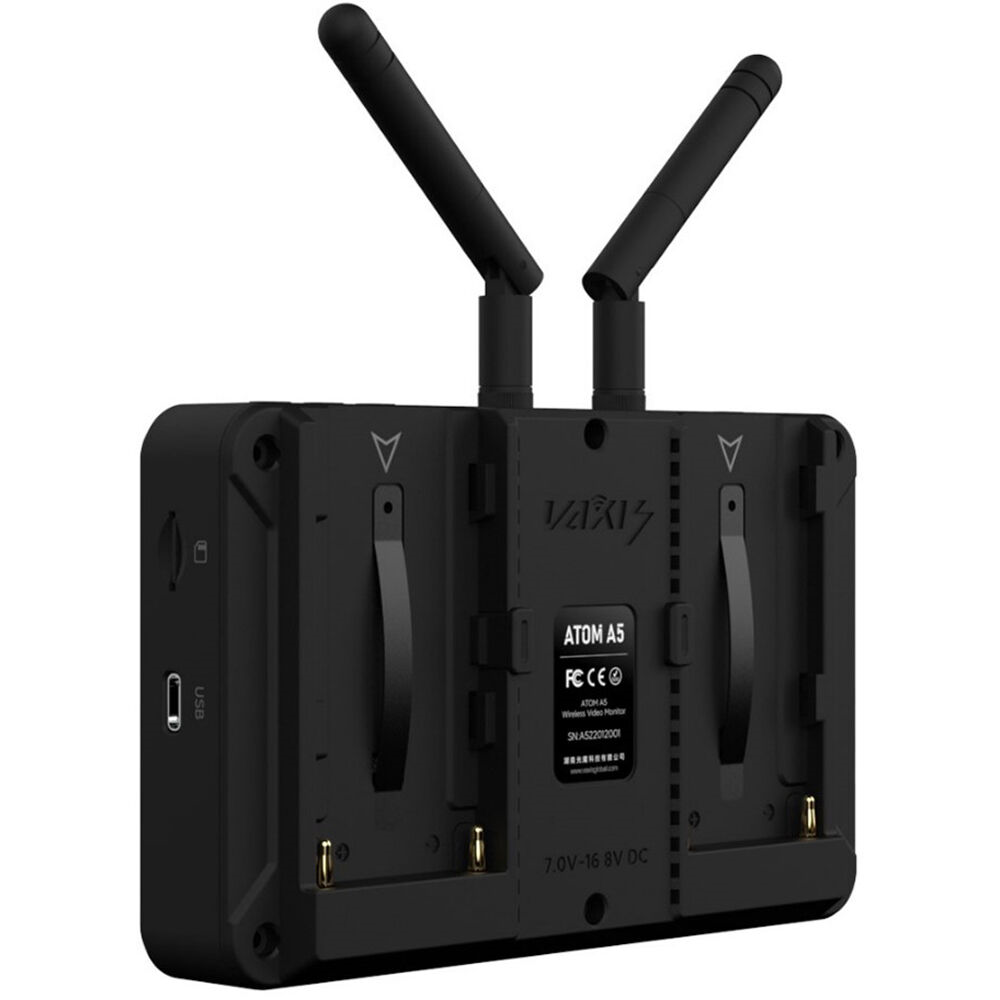

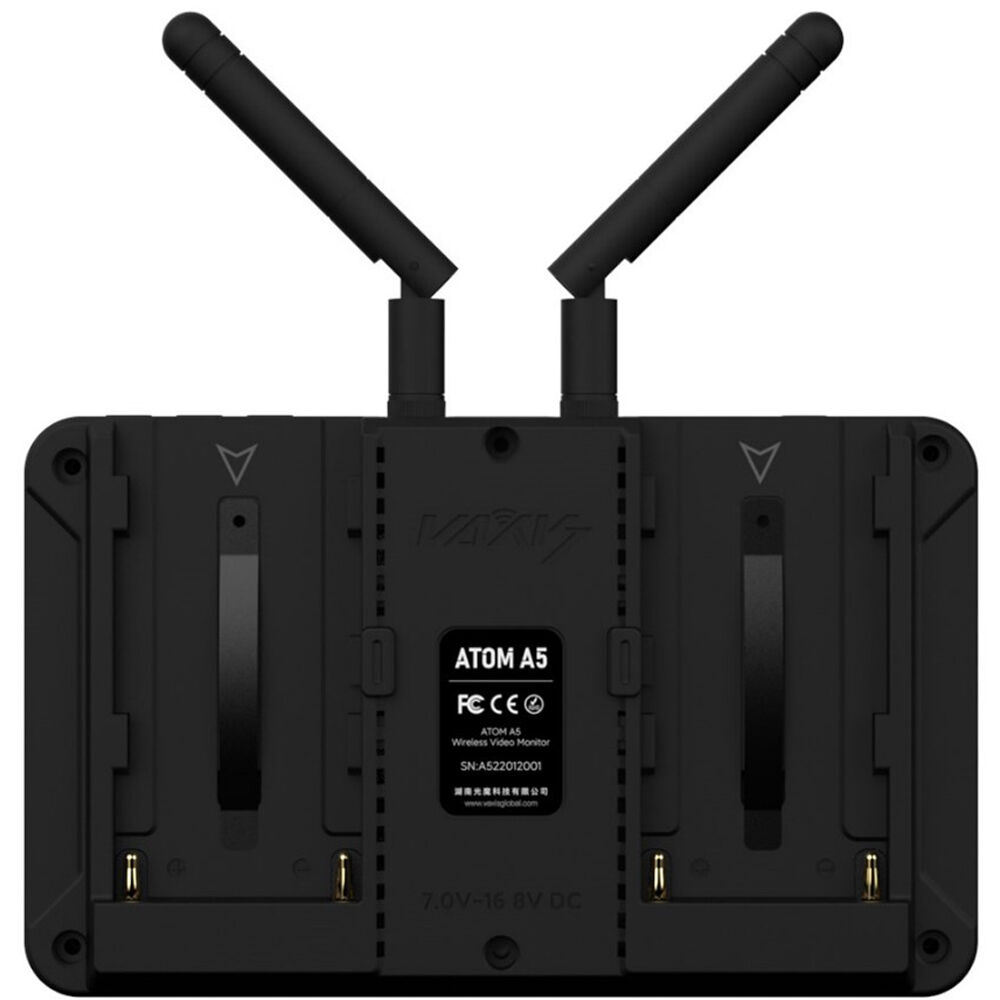

Battery
Built-in dual NP-F970 L-series battery plate
Vaxis Atom A5 Specs
Display
Panel Type | LCD |
Display Size | 5.5" / 14.0 cm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Touchscreen | Yes |
Maximum Brightness | 1000 nits / cd/m2 |
Contrast Ratio | 1200:1 |
Pixels Per Inch (ppi) | 401 ppi |
Image Controls | Focus Peaking, Histogram, Pixel Zoom, Vectorscope, Waveform |
Video I/O | 1 x HDMI Input 1 x HDMI Loop Output |
Embedded Audio | HDMI |
Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | None |
Power I/O | 1 x Barrel Input |
Other I/O | 1 x USB-C Input |
Media/Memory Card Slot | Single Slot: microSD/microSDHC |
Wireless
Wireless Range | 492.1' / 150 m |
Frequency Range | 5.1 to 5.8 GHz |
Latency | < 80 ms |
RF Power | 17 dBm |
RF Sensitivity | -80 dBm |
Wi-Fi | Yes |
Bluetooth | None |
Format Support
Video Format | HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
Audio Format | 2-Channel 48 kHz |
Power
Built-In Battery | None |
Environmental
IP Rating | None |
Environmental Protection | None |
General
Dimensions | 5.9 x 3.6 x 1.2" / 151 x 92 x 30.5 mm |
Weight | 12.3 oz / 348 g |
(A5)
SKU | A5 |
Barcode # | 6972119125353 |
Brand | Vaxis |
Shipping Weight | 1.0000kg |
Shipping Width | 0.230m |
Shipping Height | 0.110m |
Shipping Length | 0.160m |
Shipping Cubic | 0.004048000m3 |
