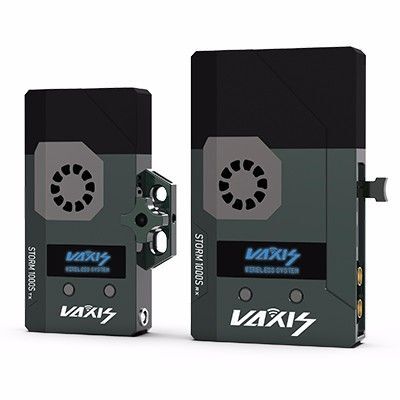

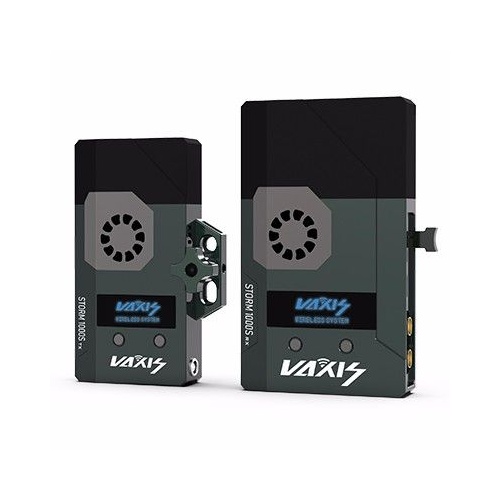

Vaxis Storm 1000S HDMI/SDI WHDI Wireless Transmission System
The Vaxis Storm 1000s Wireless HDMI and SDI System is a professional wireless HD-SDI video transmission system for broadcast, cinema and indie productions. With the high bright OLED display, users will have access to all information crucial to making a shoot possible. From battery voltage, video formats, channel, fan speed and transmission strength.
With cutting edge technology, built-in antennas, the true line-of-sight range is boosted to 1000ft. This little device has the specs for all filmmakers from film school students, YouTubers to professional DPs working on demanding jobs.

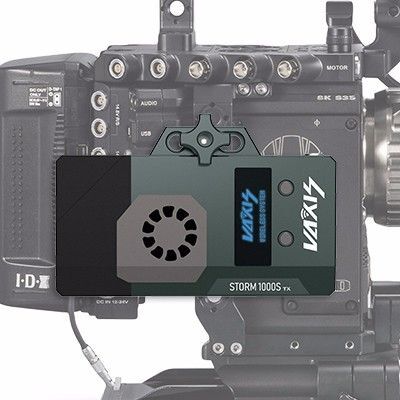

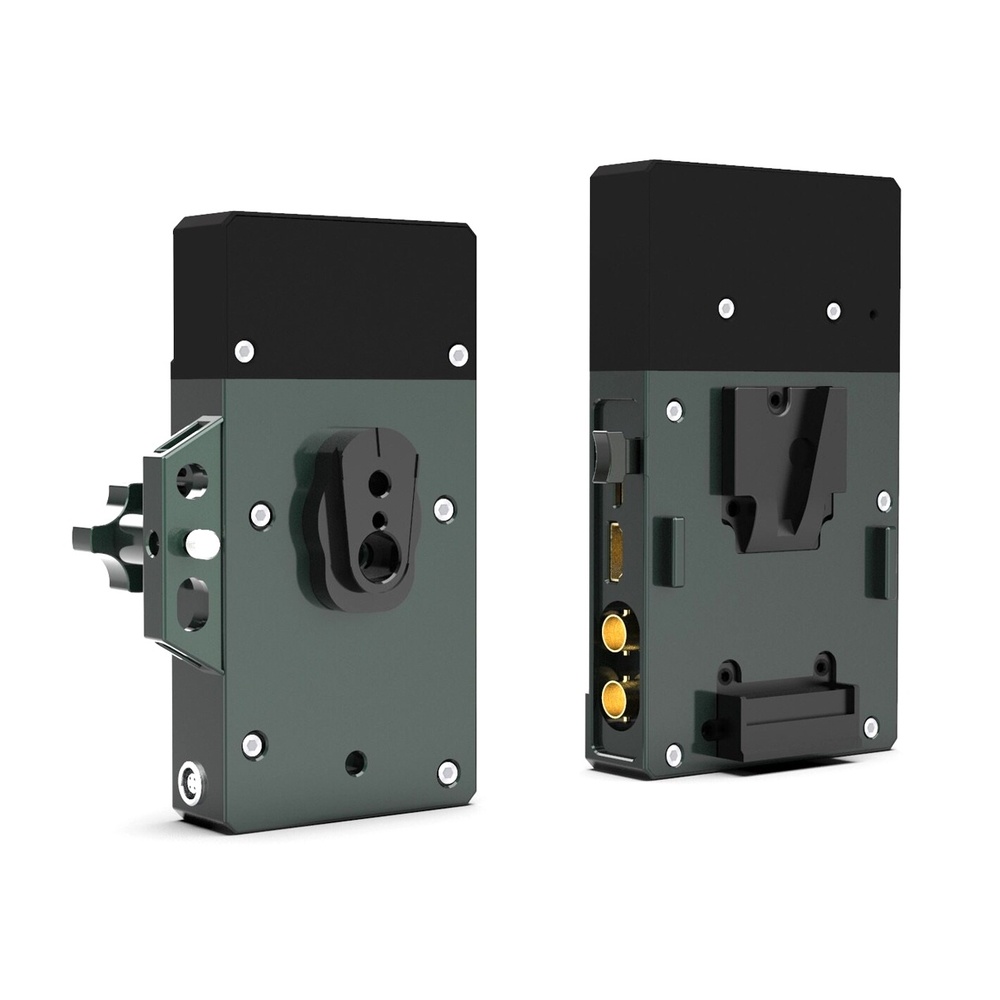

The recessed ports prevent the most common damage on sets. Buttons and I/O ports are on the same side making the unit a lot more accessible and provides better flexibility when rigging. The mounting is made easy and elegant with the mounting bracket, to make rigs low profile and streamlined for work with gimbals, drones and Steadicams.
Key Features:
- WHDI 5.1-5.9GHz Frequency band.
- Uncompressed HDMI/SDI up to 1080p60.
- 350 meters Line-of-Sight distance.
- Less than 1-millisecond latency.
- AES-128 encryption with air interface HD video data stream.
- With OLED side panels for custom configuring.
- HDMI/SDI embedded audio transmission.
- Supports metadata and time code.
- Supports 10 pairs working in one location.
- 1 transmitter multicast up to 10 receivers.
Specifications
Range | 400m |
Transmitter | |
Tx Interface | 1x SDI input female |
1x SDI loopout BNC female | |
1x HDMI input type A female | |
2x Antenna port SMA male | |
1x DC input 2-pin Lemo female | |
Supply Voltage Range | 7-36V DC |
Power Consumption | <6.5W |
Dimensions | 131 x 69 x 27mm (not including antennas) |
Weight | 290g |
Input Video Format | HDMI: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p 23.98/24/25/29.9/30/50/59.94/60 |
HDMI Type A | |
SDI: 3G, HD and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/425 | |
1x BNC | |
Output Video Format | SDI Loop Out |
Input Audio Format | SDI embedded 4 channel 24 bit/48KHz |
Signal Indicator | OLED display |
Frequency Band | 5.1-5.9GHz, config. with China, North American, Europe etc |
Modulation Mode | OFDM 16QAM |
Transmission Power | Max 21dBm |
Occupied Bandwidth | 20/40MHz |
Temperature Range | 0 to 40°C Operating / -20 to 60°C Storage |
Compliance | FCC, CE |
Receiver | |
RX Interface | 2x SDI output BNC female |
1x HDMI output Type A female | |
5x antenna port SMA male | |
DC input 2-pin Lemo female | |
Supply Voltage Range | 7-36V DC |
Power Consumption | <6W |
Dimensions | 135 x 92 x 27mm (not including antennas) |
Weight | 410g |
Output Video Format | HDMI: 525i,625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p 23.98/24/25/29.9/30/50/59.94/60 |
HDMI Type A | |
SDI: 3G, HD and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/425 | |
2x BNC | |
Output Audio | SDI embedded 4 channel 24bit/48KHz |
Signal Indicator | OLED display |
Frequency Band | 5.1-5.9GHz, config. with China, North American, Europe etc |
Modulation Mode | OFDM 16QAM |
Receiver Sensitivity | -75dBm |
Occupied Bandwidth | 20/40MHz |
Temperature Range | 0 to 40°C Operating / -20 to 60°C Storage |
Compliance | FCC, CE |
(Storm1000s)
SKU | Storm1000s |
Brand | Vaxis |
Shipping Weight | 5.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.250m |
Shipping Length | 0.500m |
Shipping Cubic | 0.050000000m3 |
