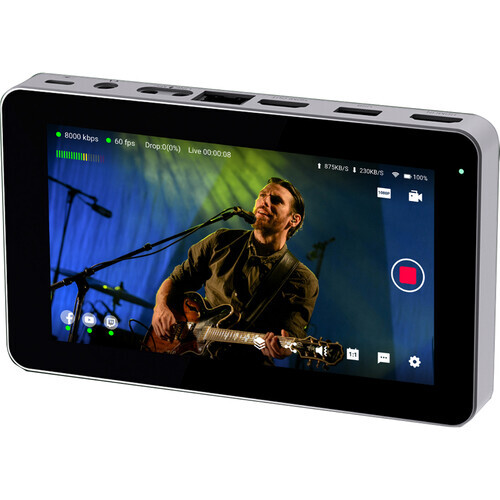

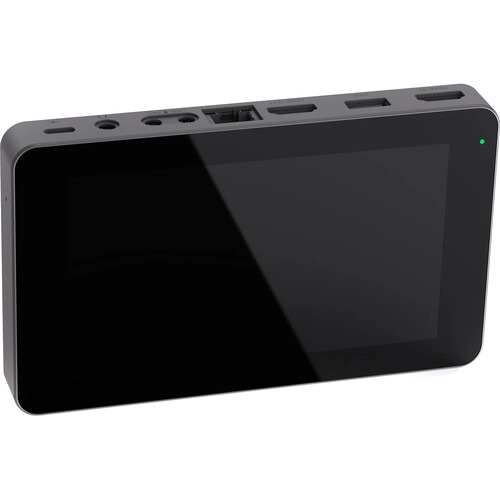

YoloLiv YoloBox Mini All-in-one Portable Multi-Camera Monitor Switcher
The YoloBox Mini is ideal for streaming from a single camera or when connected to a switcher's output, as it will not only encode and stream, but also add graphic overlays freeing you from needing a computer. Simply connect your video input to either HDMI or USB 2.0, then connect to a local area network via Wi-Fi, Ethernet, or LTE (LTE connection requires SIM card and data plan not included). It also features an HDMI output to display your stream locally on an optional HDMI display. The YoloBox Mini supports input resolutions ranging up to 1080p60 and can stream to YouTube, Twitch, and other streaming services via custom RTMP presets. You can record your stream directly in MP4 format to an optional SD card with up to 1TB capacity using the built-in SD card slot.
Key Features
- Touch control without a computer
- 5.5" LCD with 500 cd/m² brightness
- Built-in simultaneous streaming to up to 3 destinations
- HDCP compliant
- Stream via Ethernet, Wi-Fi, LTE 4G
- 1 x HDMI inputs, 1 x USB video input, 1 x SD card slot, 1 x HDMI output
- One USB Type-C charging input
- Mic and line audio input
- Ability to input PDF
- Add logos/comments to the stream
- Import pictures/videos from SD card
- Records internally to an SD card up to 128GB
- Direct integration with YouTube/Facebook/RTMP(s)
- Supports up to 1080p60 video
Touchscreen Control
The YoloBox Mini provides you with a touchscreen interface for easy streaming and control.
Functions
The device works as an encoder that allows for live streaming, and it can record to optional SD cards up to 1TB.
Overlays
- You can brand your live stream by adding logos/watermarks/rolling captions
- Customized options, including Interview mode, allow you to bring a unique look and feel to your stream
- Engage with your audience in real time via feature comment overlays
- The customizable scoreboard feature displays a real-time-controlled scoreboard for professional looking results
- Built-in lower-thirds templates can be edited or you can add your own
Internet
You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card and data plan.
Streaming Platforms
Major steaming platforms such as Facebook live, YouTube, and twitch as well as YoloLIV are supported.
RTMP protocols allow you to stream to custom RTMP destinations including YouTube.
Specs
IP Encoding/Decoding
IP Video | H.264: 960 x 540 to 1920 x 1080 Encoding |
IP Audio | AAC-LC: Encoding |
Transport Protocols | RTMP |
Simultaneous Streams | 3 Streams |
Compatible Services | Facebook Live, Twitch, YouTube Live |
Wireless
Wi-Fi | 2.4/5 GHz |
Cellular
SIM Card Slots | 1 x Nano SIM |
4G LTE | LTE |
Interfaces

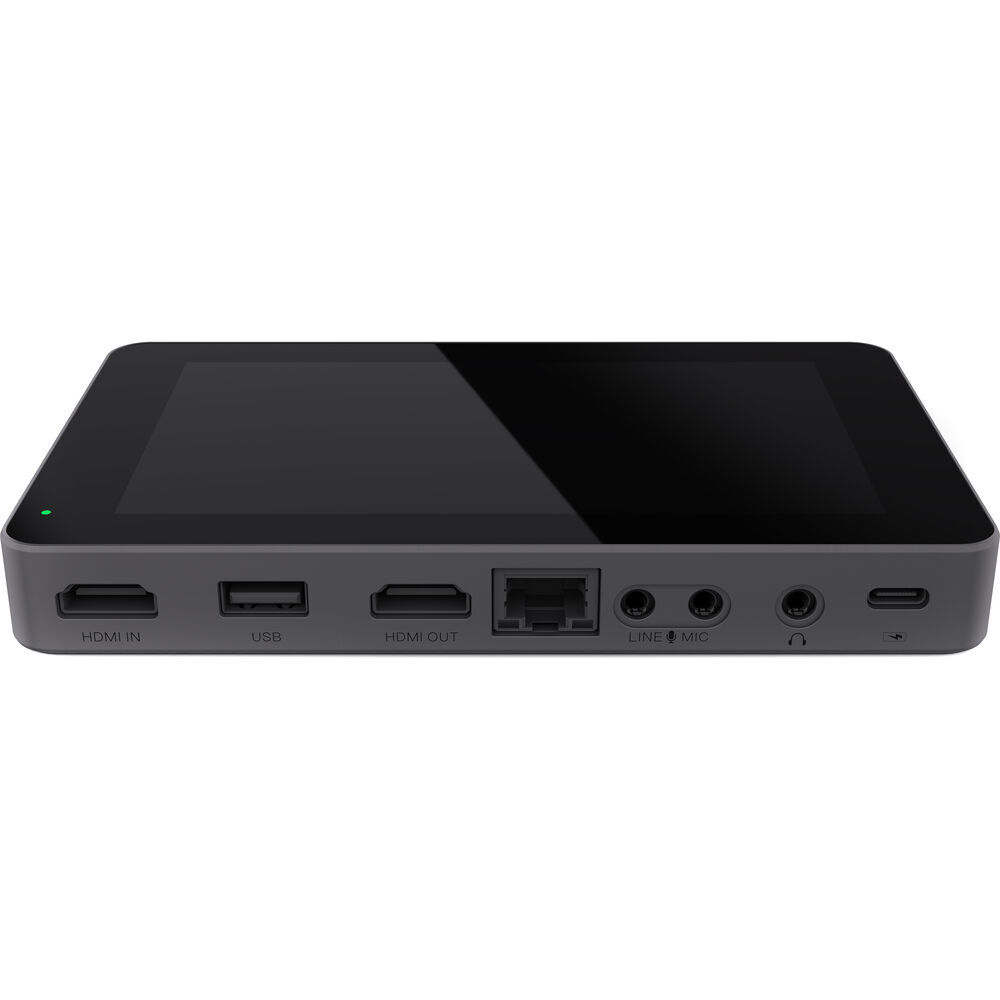

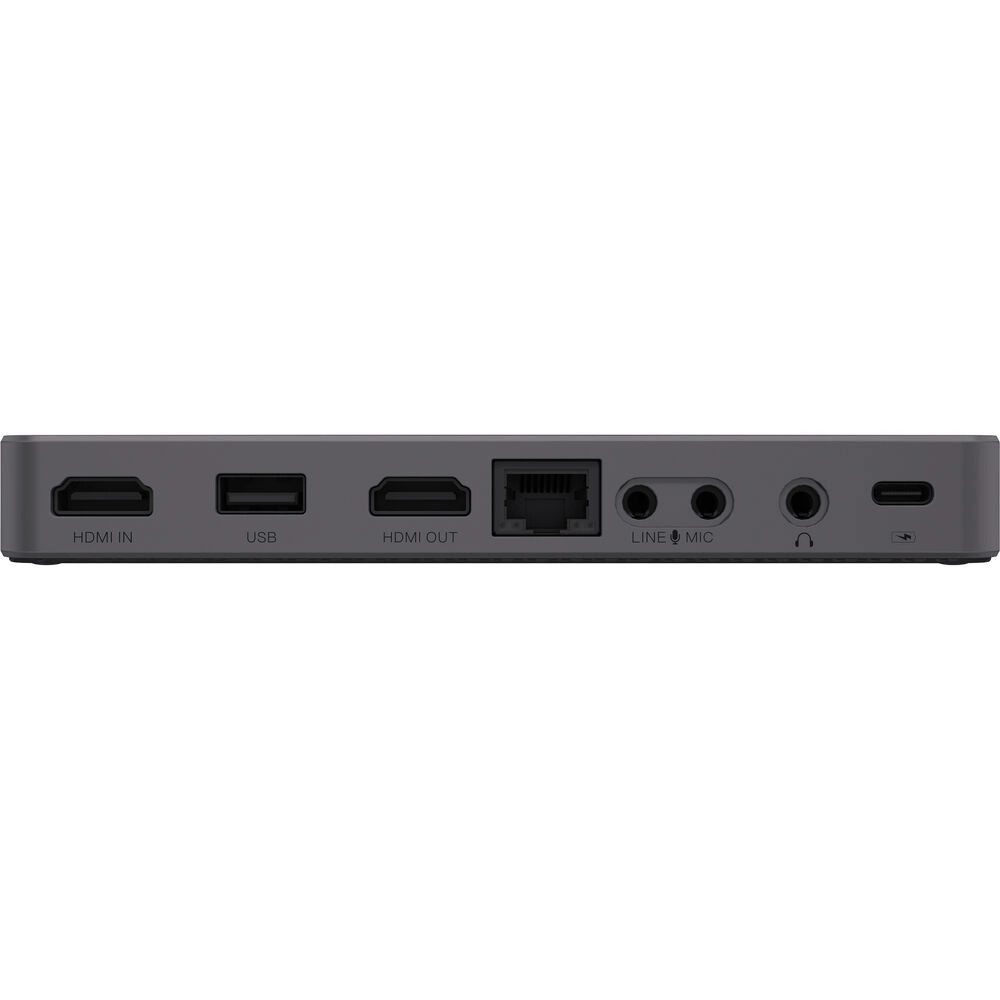

Video Connectors | 1 x HDMI Input 1 x HDMI Output |
Audio Connectors | 1 x 1/8" / 3.5 mm TRS Stereo Analog Input 1 x 1/8" / 3.5 mm TRS Mono Analog Input 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Output |
Other I/O | 1 x RJ45 10/100 Ethernet Input/Output 1 x USB Type-A USB 3.1 Gen 1 Input 1 x USB Type-C USB 3.1 Gen 1 Input/Output |
Embedded Audio | HDMI/USB Type-C/Wireless: 2-Channel |
Internal Recording
Recording Media | 1 x SD (Unspecified Type) |
Recording Modes | 1920 x 1080p up to 60 fps |
Built-In Battery | 4700 mAh |
Power Connector | 1 x USB Type-C (5 to 12 VDC at 1.5 A) Input |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 15 to 85% |
Storage Temperature | 41 to 104°F / 5 to 40°C |
Display | LCD |
Dimensions | 155 x 92.6 x 20 mm |
Weight | 320 g |
(YoloBoxMini)
SKU | YoloBoxMini |
Barcode # | 664918139087 |
Brand | YoloLiv |
Shipping Weight | 1.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.080m |
Shipping Length | 0.250m |
Shipping Cubic | 0.004000000m3 |
