YoloLiv YoloBox Pro All-in-one Portable Multi-Camera Monitor Switcher

$1,699.00
RRP $1,799.00
SAVE $100.00 (6%)


or 4 payments of $424.75 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

The YoloBox Pro allows you to connect and live switch up to 8 video sources, and then connect to a local area network via Wi-Fi, Ethernet, or LTE (LTE connection requires SIM card and data plan not included). The large 8" touchscreen display shows the streaming image, the input streams as well as the control interface, which allows you to switch between the info sources with a touch. It also features an HDMI output to display your stream locally on an optional HDMI display. It also has a line-level audio input, a mic-level audio input, and a discrete headphone audio out.

The YoloBox Pro supports input resolutions ranging up to 1080p using the H.264 codec, and you can stream resolutions from 540p to 1080p to YouTube, Twitch, and other streaming services via custom RTMP presets. Stream to the Internet using a 4G cellular network such as Verizon, T-Mobile, and AT&T, using a separately available nano-size SIM card and a separately available data plan. You can record your stream directly in .mp4 format to an optional SD card with up to 128 GB capacity using the built-in SD card slot.

New Firmware 1.6.0 Update

As of the 1.6.0 update:

  • Web URL Overlay: you can create professional-grade live graphics in minutes on any production, or enter an URL of a customized scoreboard generated from a live graphics platform like singular.live or flexyscore.net for professional sports events.
  • Auto-Switching: the auto-switching feature allows you to automatically rotate between up to 6 video sources, including camera angles (HDMI 1, HDMI 2, HDMI 3, USB Type-C, and USB Type-A), SD card (videos and PDF), multi-views (PIP, Side by Side, Split View, News Layout, and Triple), and live stream (as video source). This feature is especially useful if you are running a production by yourself, or if you want to have continuous camera switching
  • USB Webcam Out: USB webcam out feature was released a couple of weeks before, and it's optimized in this version. You can now output both video and audio to your computer for meetings on Zoom, Skype, Teams, and more.
  • Additional Multi-View Templates: a Multiview is an on-screen asset that allows you to combine multiple sources, such as camera angles, USB inputs, and SD card assets (videos and PDF) into a single view. We released 2 new multiview types, News Layout and Triple.
  • SD card video playback timing.
  • Scheduling a live stream within one year.
  • Option to adjust transparency for countdown timer overlay.
  • Save all graphic overlays while creating a new live stream.
  • UI redesigned for the "Account" screen.

Key Features

  • Touch control without a computer
  • 8" LCD display with 400 cd/m² brightness
  • Built-in simultaneoulsy streaming to up to 3 destinations
  • HDCP compliant
  • Stream via Ethernet, Wi-Fi, LTE 4G

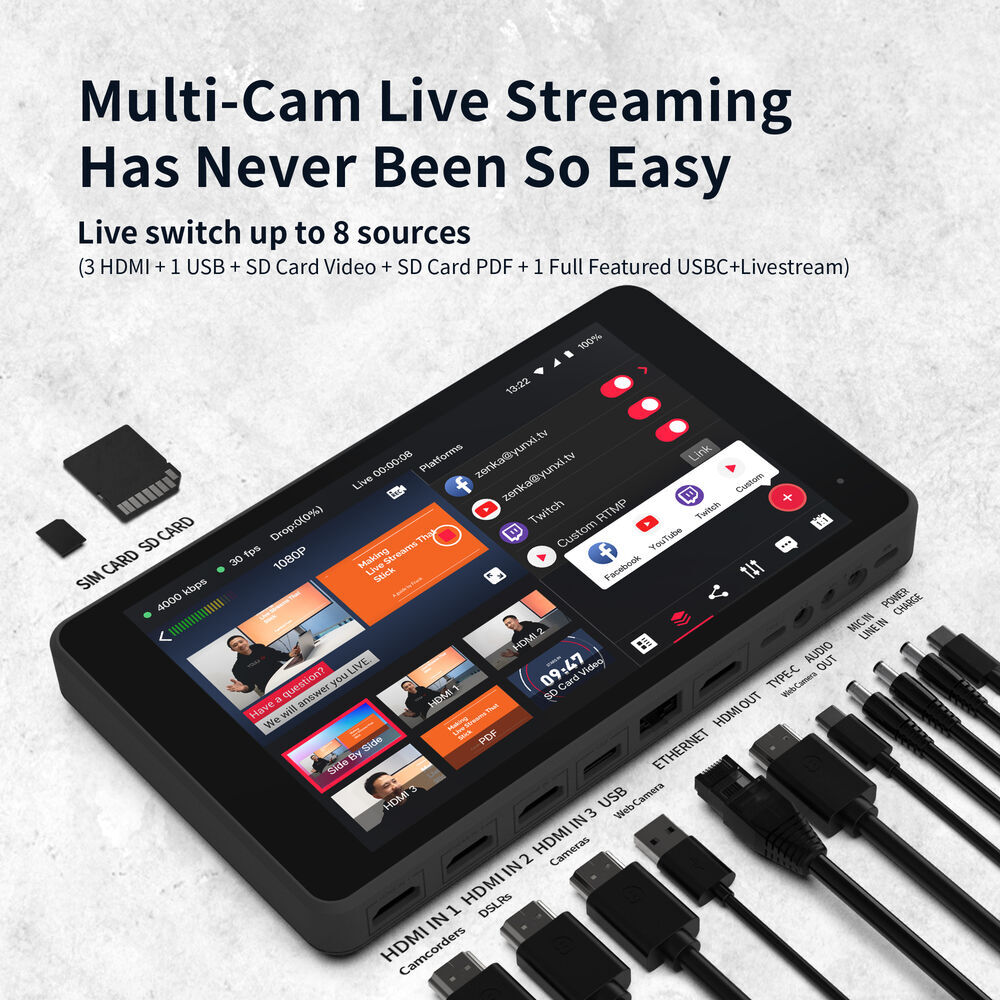

  • Live switch up to 8 sources

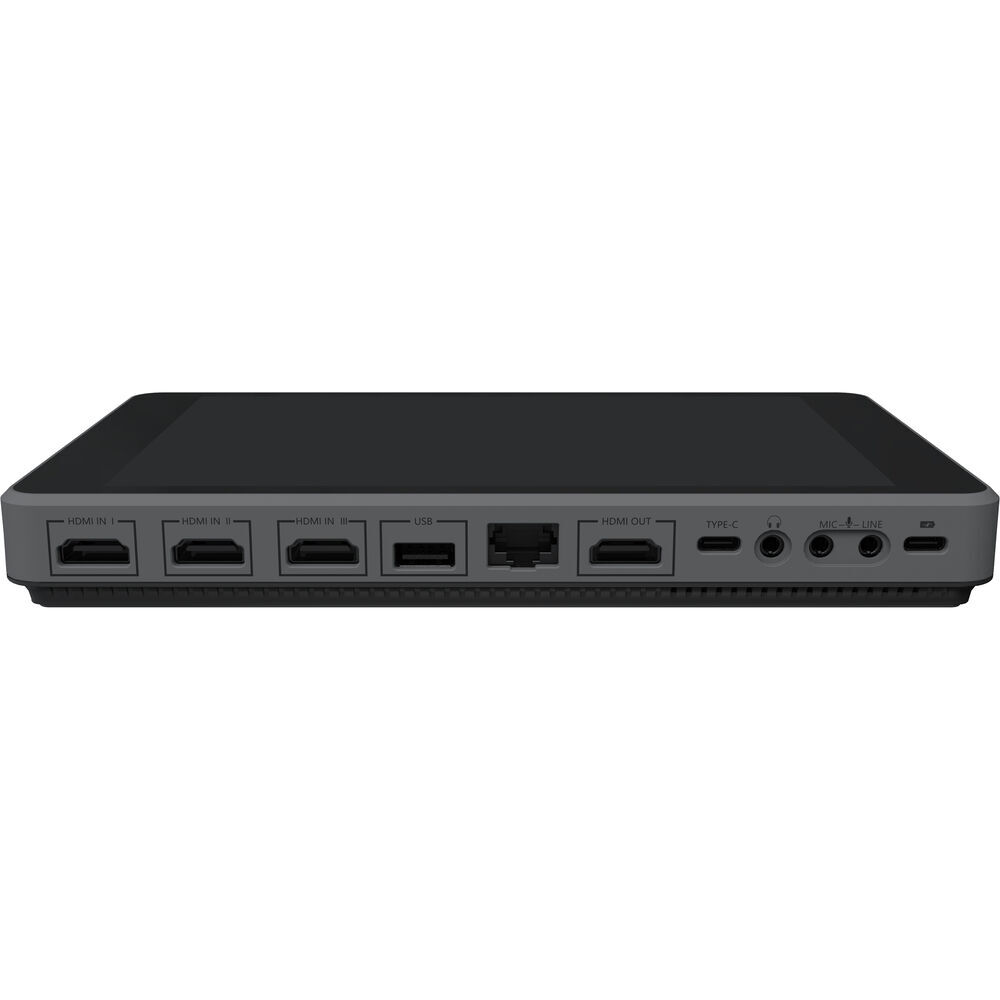

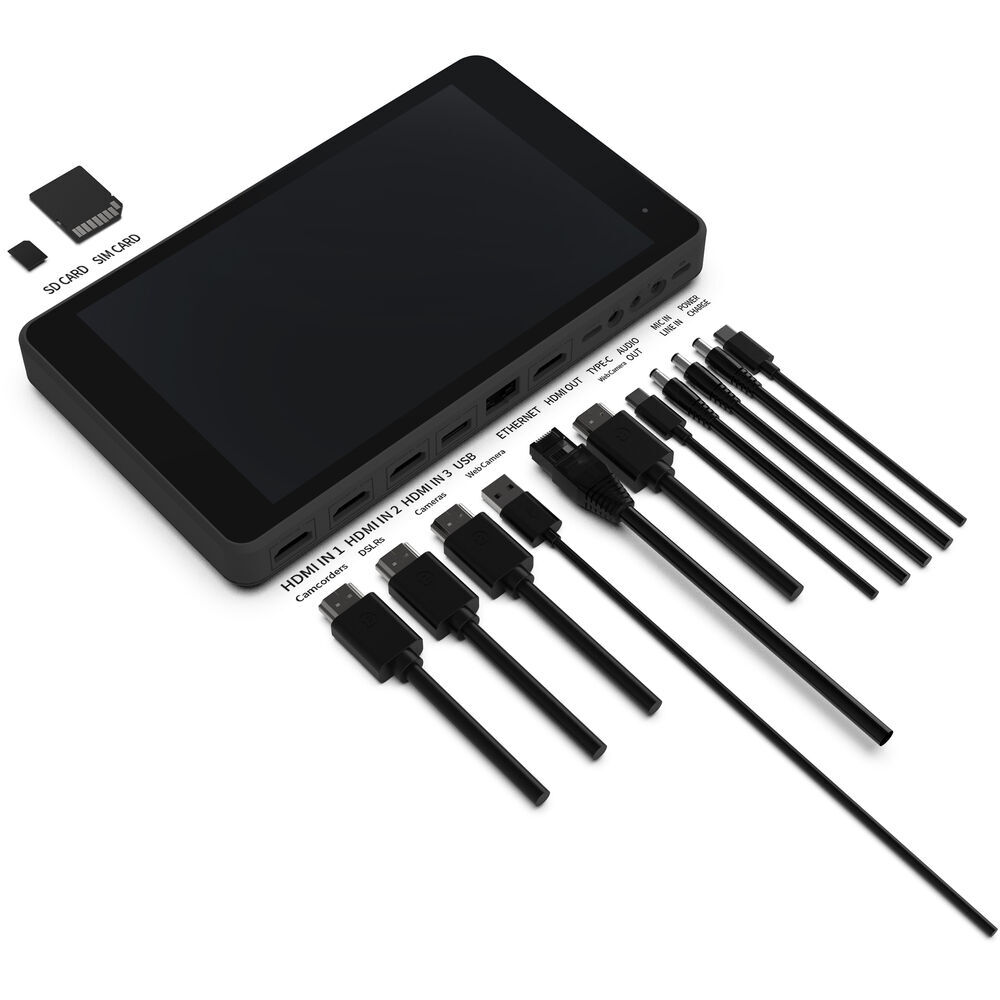

  • 3 x HDMI inputs, 1 x USB video input, 1 x SD card slot, 1 x HDMI output
  • One USB Type-C charging input
  • Mic and Line audio input, 1 x audio output
  • Ability to input PDF
  • Add logos/comments to the stream
  • Import pictures/videos from SD card
  • Records internally to SD card up to 128GB
  • Direct integration with YouTube/Facebook/RTMP(s)
  • Supports up to 1080p60 video

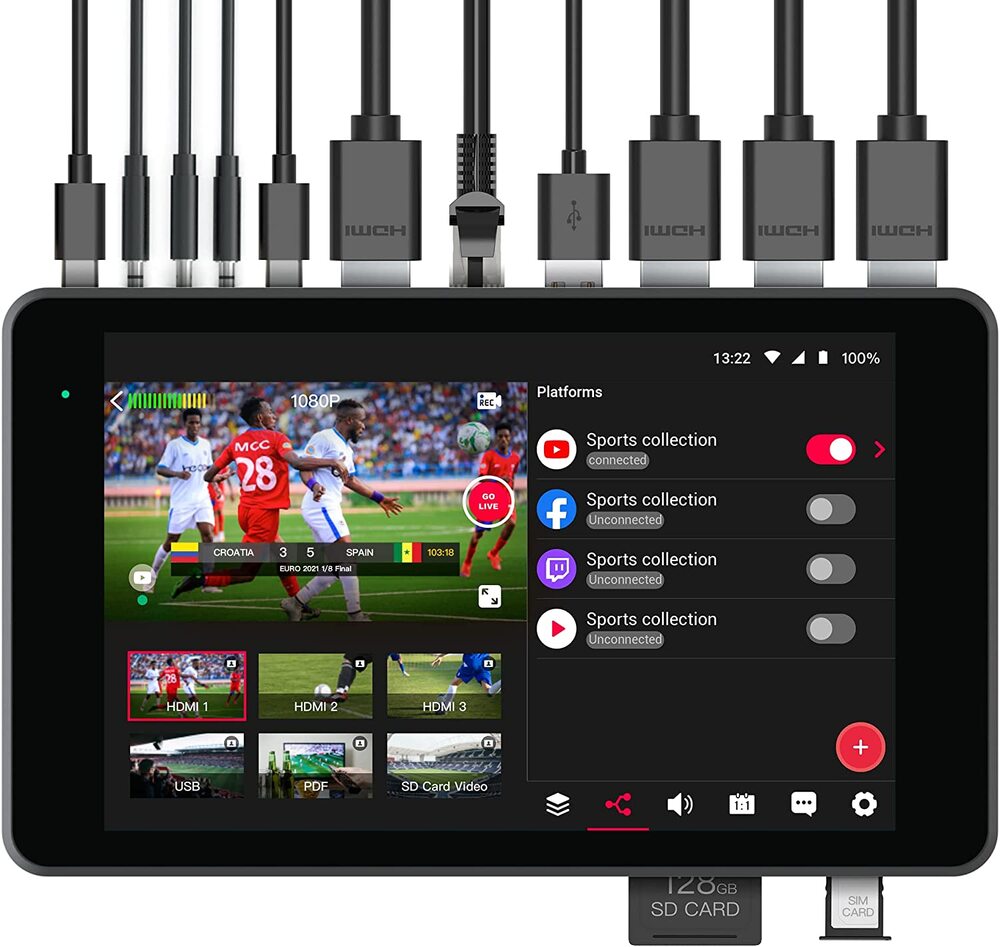

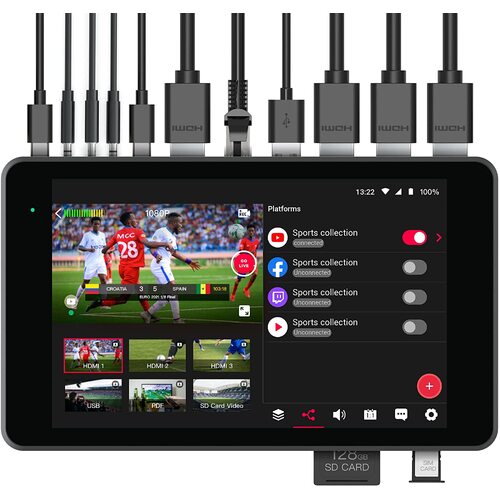

Touchscreen Control

The YoloBox Pro provides you with a large touchscreen interface for easy streaming and control.

Functions

The device works as a switcher, with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and it can record to optional SD cards up to 128GB.

Overlays

  • You can brand your live stream by adding logos/watermarks/rolling captions
  • Customized PiP options, including Interview mode, allow you to bring a unique look and feel to your stream
  • Engage with your audience in real time via feature comment overlays
  • The customizable scoreboard feature displays a real-time-controlled scoreboard for professional looking results
  • Built-in lower-thirds templates can be edited or you can add your own

Internet

You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card.

Simultaneous Streaming

YoloBox Pro will first push your feed to the YoloLIV platform, from where it automatically forward your feed to a maximum of 3 destinations simultaneously.

Streaming Platforms

Major steaming platforms such as Facebook live, YouTube, and twitch as well as YoloLIV are supported.

RTMP protocols allow you to stream to custom RTMP destinations including YouTube.

SD Card Input

Roll in pre-recorded videos for intro, countdown, B-roll, or special segments from an SD media card.

PDF

You can load a PDF as a local source to your YoloBox.

Battery Life

The internal 10,000mAh battery can power your YoloBox Pro for approximately 3 hours. The YoloBox Pro charges via a USB Type-C input, which is used for power only.



Specs

IP Encoding/Decoding

IP Video H.264:
960 x 540 to 1920 x 1080 Encoding
IP Audio AAC-LC: Encoding
Transport Protocols RTMP
Simultaneous Streams 3 Streams
Compatible Services Facebook Live, Twitch, YouTube Live

Wireless

Wi-Fi 2.4/5 GHz

Cellular

SIM Card Slots 1 x Nano SIM
4G LTE LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 20, 25, 26, 28, 38, 39, 40, 41, 66, 71 Bands

Interfaces

Video Connectors 3 x HDMI Input
1 x HDMI Output
Audio Connectors 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Input
1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Mono Analog Input
1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Output
Other I/O 1 x RJ45 10/100 Ethernet Input/Output
1 x USB Type-A USB 3.1 Gen 1 Input
1 x USB Type-C USB 3.1 Gen 1 Input/Output
Embedded Audio HDMI/USB Type-C/Wireless: 2-Channel

Internal Recording

Recording Media 1 x SD (Unspecified Type)
Recording Modes 1920 x 1080p up to 60 fps
Built-In Battery 10,000 mAh
Power Connector 1 x USB Type-C (5 to 12 VDC at 1.5 A) Input
Operating Temperature 14 to 104°F / -10 to 40°C
Storage Temperature 41 to 104°F / 5 to 40°C
Display LCD
Dimensions 218 x 129 x 27 mm
Weight 750 g

(YololivPro)

SKU YololivPro
Barcode # 664918139063
Brand YoloLiv
Shipping Weight 1.0000kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.250m
Shipping Cubic 0.004000000m3

YoloBox Pro is a good choice for church live broad

19 January 2024
After using it for a while, I think YoloBox Pro is a good choice for church live broadcasting. HD picture quality, portable design, one-click green screen and one-click live broadcast make it easy for me to broadcast live. Thank you YoloBox Pro!
