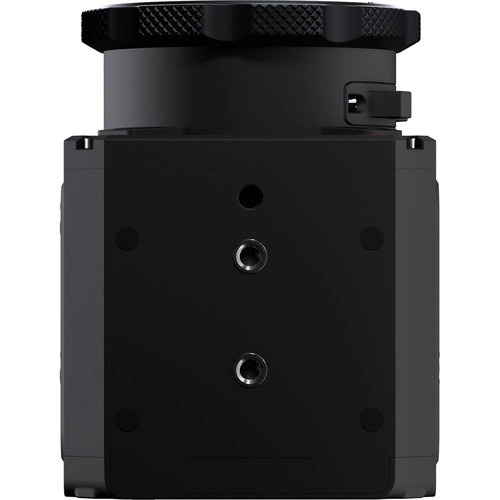

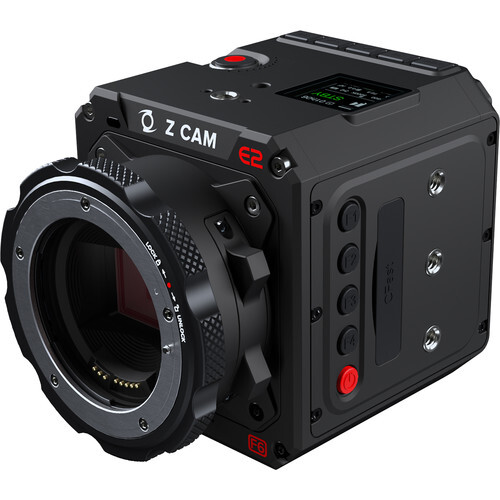

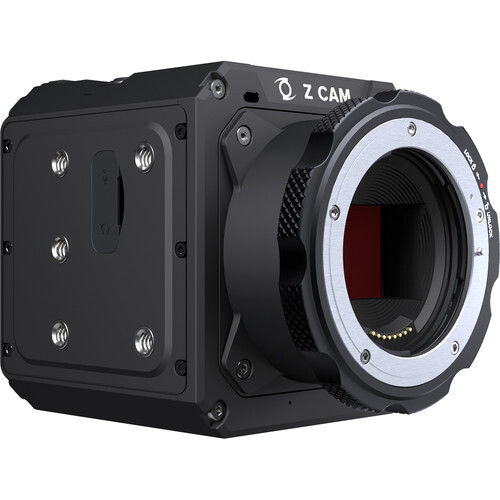

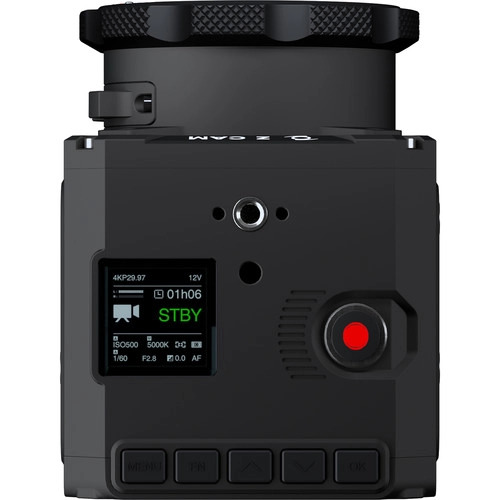

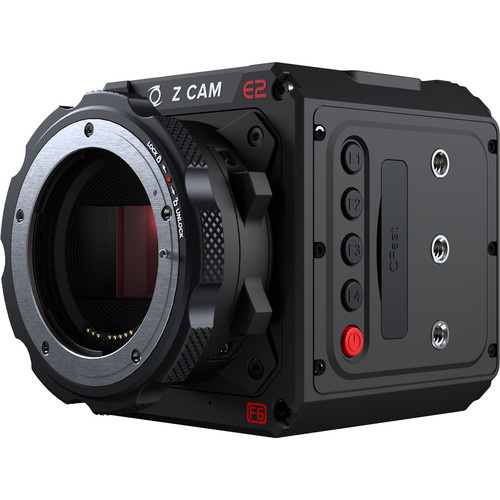

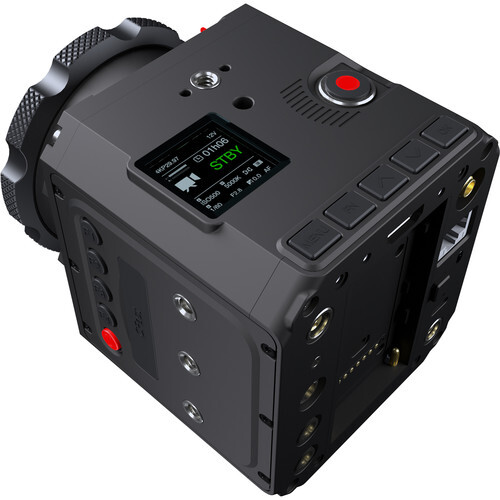

Z-CAM E2-F6 EF MOUNT FULL FRAME 6K CINEMA CAMERA
Inter-changeable Lens Mount
TECHNICAL SPECIFICATIONS
Camera Features
|
|
Sensor Type | Full Frame CMOS Sensor |
Sensor Size | 37.09 x 24.75 mm |
Effective Pixels | 26M |
Dynamic Range | 15 Stops |

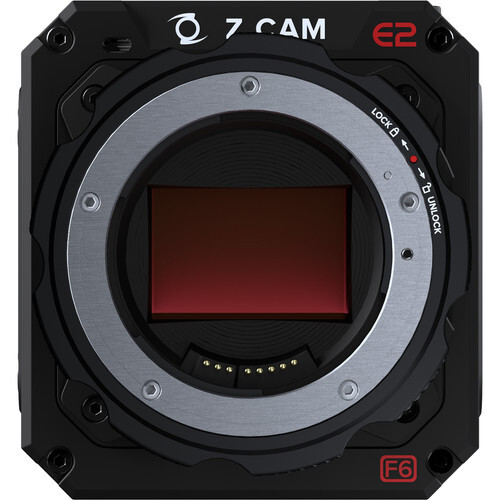

Lens Mount | EF |
Microphone | Built-in Stereo Microphone |
Recording | |
Resolution & Max Frame Rate | 6244x4168 @30fps max (6K Open Gate) |
6144x3240 @48fps max (DCI 6K) | |
6144x2592 @60fps max (DCI 6K 2.4:1) | |
5760x3240 @48fps max (6K UHD) | |
5552x4164 @30fps max (5K 4:3) | |
4992x4160 @30fps max (5K 6:5) | |
4096x2160 @72fps max (DCI 4K) * | |
4096x1728 @120fps max (DCI 4K 2.4:1) | |
3840x2160 @72fps max (4K UHD) * | |
3840x1620 @90fps max (4K UHD 2.4:1) | |
1920x1080 @120fps max (FHD) | |
Max Bit Rate | 300 Mbps for all resolutions (H.265 & H.264) |
Color Bit-depth | 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264) |
Video Encoder | H.265 main 10 profile / H.264 high profile |
ZRAW | 12-bit & 14-bit |
Audio Format | 24-bit 48 kHz |
Audio Encoder | AAC / PCM (for MOV only) |
File Format | MOV / MP4 |
Record Mode | Video / Time Lapse Video |
Settings | |
ISO | Auto, Manual (400 ~ 125000), Dual Native ISO: 400 / 2500 |
Shutter | Shutter Speed: Auto, Manual (1”~ 1/8000”) or |
White Balance | Auto, Preset, Manual (2300K ~ 7500K) |
Focus Mode | MF / AF / CAF |
Image | Brightness / Contrast / Saturation / Sharpness |
Image Config | Rec.709 / Z-Log2 / FLAT / HLG |
Audio | Audio In / Out Level |
Time Code | Current Time / Manual Input |
Storage
|
|
Media | CFAST 2.0 |
File System | exFAT |

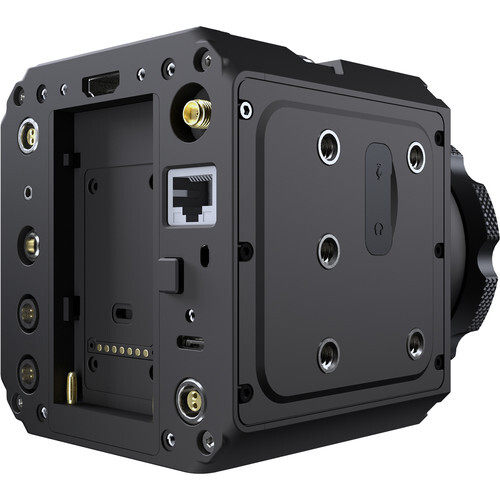

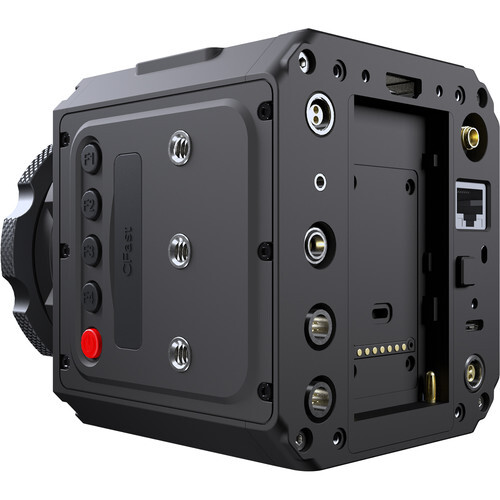

Connectivity | |
HDMI | HDMI 2.0 Type A (video output up to C4K @ 60fps, 10-bit 4:2:2) |
USB | USB 3.0 Type C for camera control & data transfer only |
COM | 2 x Serial Port |
Remote Control | 2.5 mm jack socket (Sony LANC compatible) |
Audio-in | 3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector) |
Audio-out | 3.5 mm stereo jack socket |
Wi-Fi | 5G, 802.11n with external antenna port |
Ethernet | Gigabit Ethernet port for control, setting & live streaming |
Power | |
Battery | Sony NP-F series compatible (Battery not included) |
Power Input | DC 12V (2-pin LEMO socket), with LEMO connector |
Power Output (AUX) | DC 12V (2-pin LEMO socket) |
Physical | |
Material | Aluminum Alloy |
Weight | TBD |
Dimensions (W x H x D) | 91.2 mm x 99.2 mm x 89.1 mm (without lens) |
Environment | |
Storage Temperature | -20 °C ~ 60 °C |
Operation Temperature | 0 °C ~ 40 °C |
(E2F6)
SKU | E2F6 |
Barcode # | 841687100313 |
Brand | Z-Cam |
Shipping Weight | 2.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
Shipping Cubic | 0.024000000m3 |
